Description

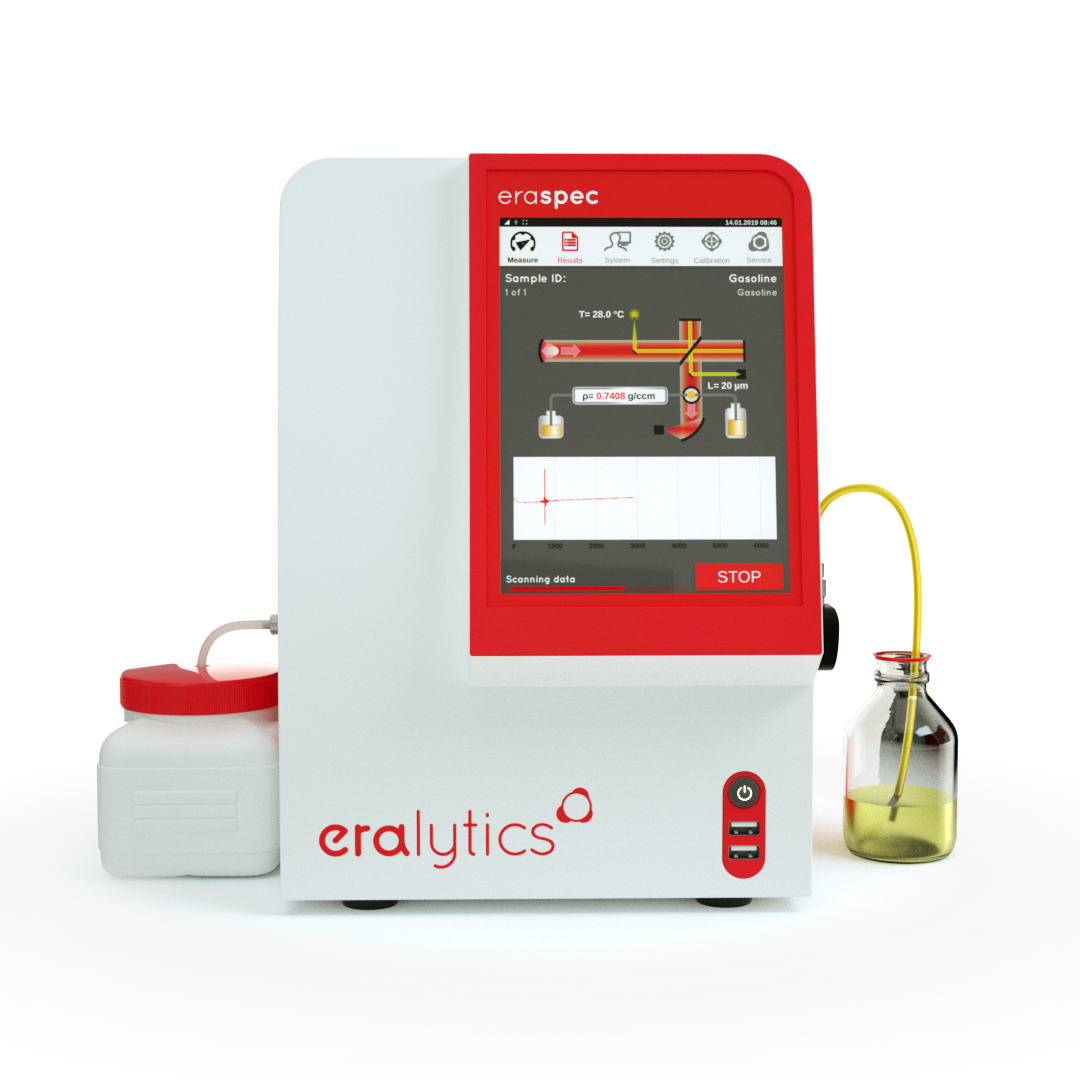

Eraspec

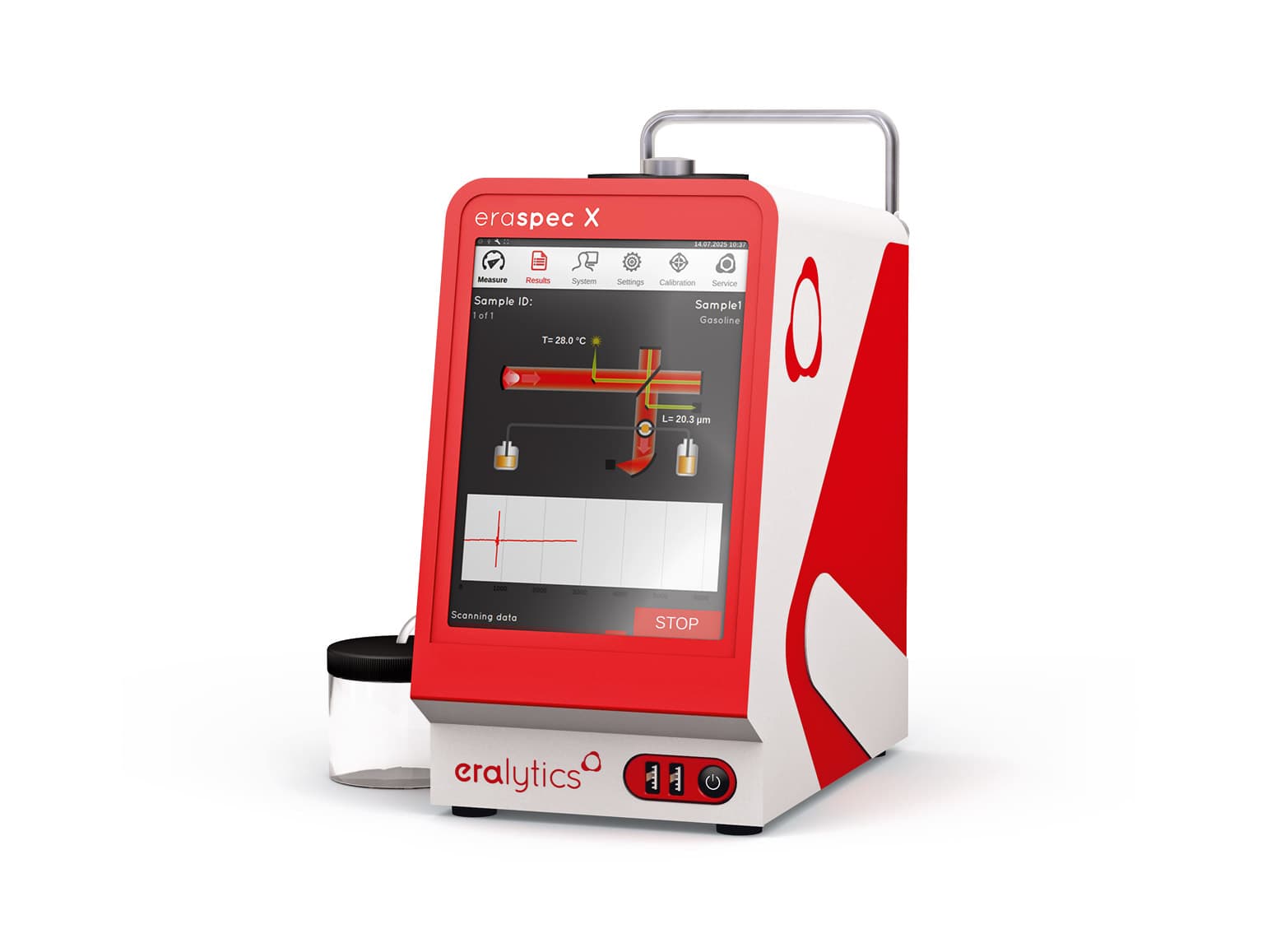

Eraspec X
Is a portable, fully automated mid-Fourier Transform Infrared (FTIR) spectrometer designed for rapid multi-fuel analysis. It provides detailed chemical component analysis and key physical property predictions for gasoline, diesel, jet fuel, and biofuels in under 60 seconds using a single push-button operation.
Key Capabilities & Parameters Tested
- Gasoline Analysis: Measures concentrations of aromatics (including benzene), oxygenates (ethanol, MTBE, ETBE), olefins, and saturates. Chemometric models calculate calculated parameters including Research Octane Number (RON), Motor Octane Number (MON), Anti-Knock Index (AKI), Vapor Pressure (DVPE/RVP), and distillation fractions.
- Diesel Analysis: Quantifies biodiesel content (FAME/FAEE), total aromatics, poly-nuclear aromatics (PNA), and cetane improvers (2-EHN). Calculates cetane number, cetane index, flash point, and distillation profiles.
- Jet Fuel Analysis: Measures total aromatics, PNA, and FAME contamination, while determining freezing point, flash point, smoke point, and viscosity.
- Biofuels & Ethanol: Detects ethanol/methanol concentrations, water content, and denaturants, and distinguishes between FAME/FAEE and pure vegetable oil.
Standards & Compliance
ERASPEC complies with or correlates to key international standard test methods:
Method / Standard | Application |
ASTM D6277 / EN 238 | Benzene content in spark-ignition fuels |
ASTM D5845 | Oxygenates in gasoline by FTIR |
ASTM D7806 / EN 14078 | Biodiesel (FAME) in diesel blends |
ASTM D4052 / ISO 12185 | Density of liquids via oscillating U-tube (when equipped with density module) |
Correlations (ASTM D86, D2699, D2700, D613) | Distillation, Octane (RON/MON), and Cetane Number |

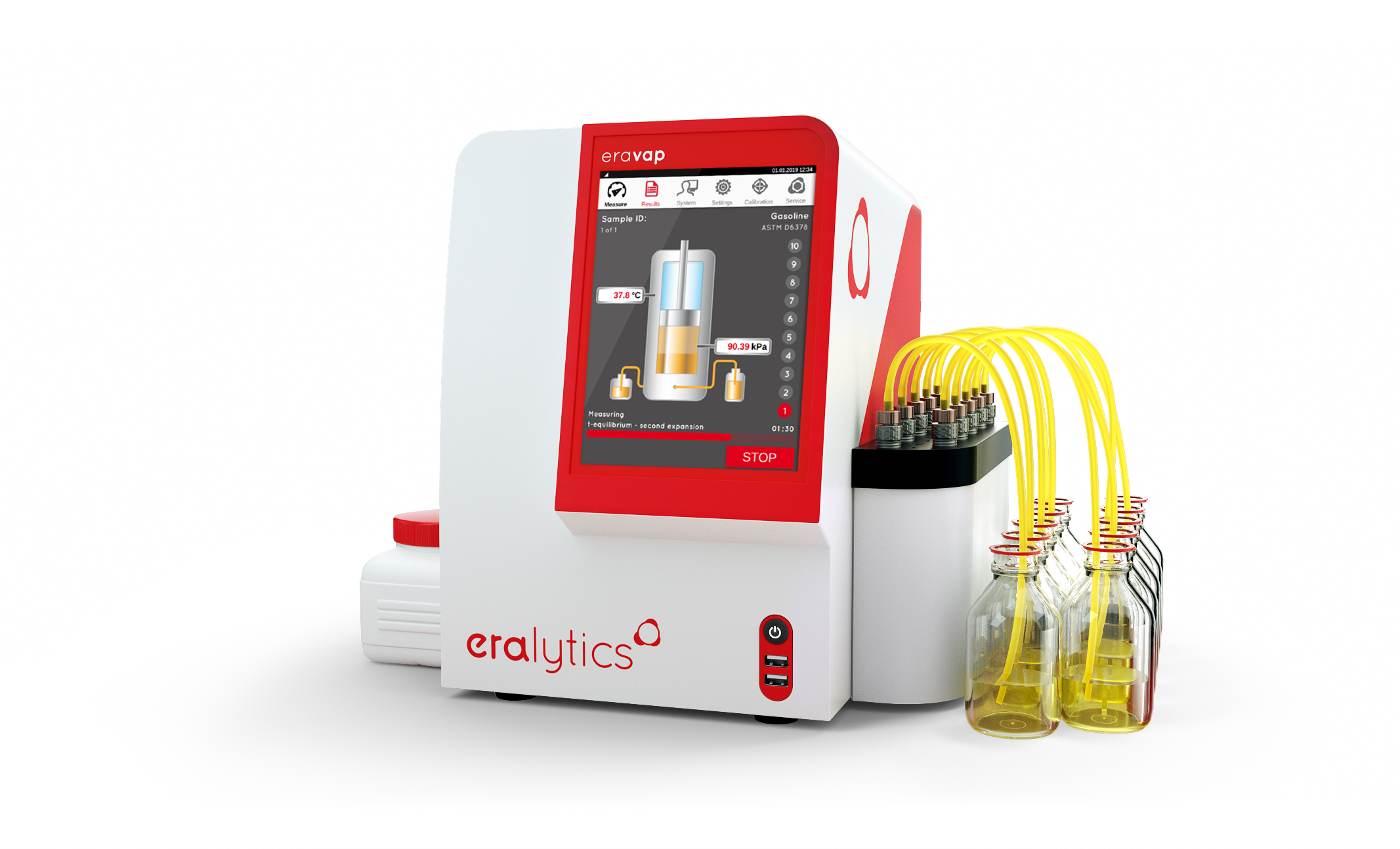

Eravap
A portable, fully automated flash point tester engineered for maximum safety and high-speed quality control across petroleum products, chemicals, and liquid waste. Operating with Continuously Closed Cup (CCCFP) technology, it provides precise measurements on micro-sample volumes in under 10 minutes with a single push-button operation. Its rugged, electric-spark ignition design eliminates open flames, making it an essential analyzer for refineries, mobile laboratories, and hazardous waste facilities worldwide.
Key Capabilities & Parameters Tested
- Flash Point Range: Measures flash points across a wide temperature spectrum, spanning from up to ( to ), accommodating both volatile solvents and heavy fuels.
- Micro-Volume Safety: Requires as little as of sample per test, significantly reducing hazardous waste generation, thermal risks, and toxic fume exposure during analysis.
- Continuous Closed Cup Method: Utilizes an unvented test chamber where an electric spark ignites sample vapors, measuring the resulting pressure peak to determine flash point without relying on manual flame observation.
- Fuel Contamination & Dilution: Rapidly detects gasoline contamination in diesel fuel, ethanol in gasoline, or unburnt fuel dilution in used lube oils for engine health monitoring.
Standards & Compliance
Method / Standard | Application |
ASTM D6450 / D7094 | Continuously Closed Cup Flash Point (CCCFP) of fuel, lube oils, and solvents |
ASTM D93 / D56 / D3828 (Correlation) | Statistically proven correlation to Pensky-Martens, Tag, and Small Scale Closed Cup methods |
EN ISO 2719 / IP 34 (Correlation) | Standard flash point correlation for international marine fuel and petroleum specs |
CLP / GHS / ADR | Classification of dangerous goods for transport, storage, and chemical safety labeling |

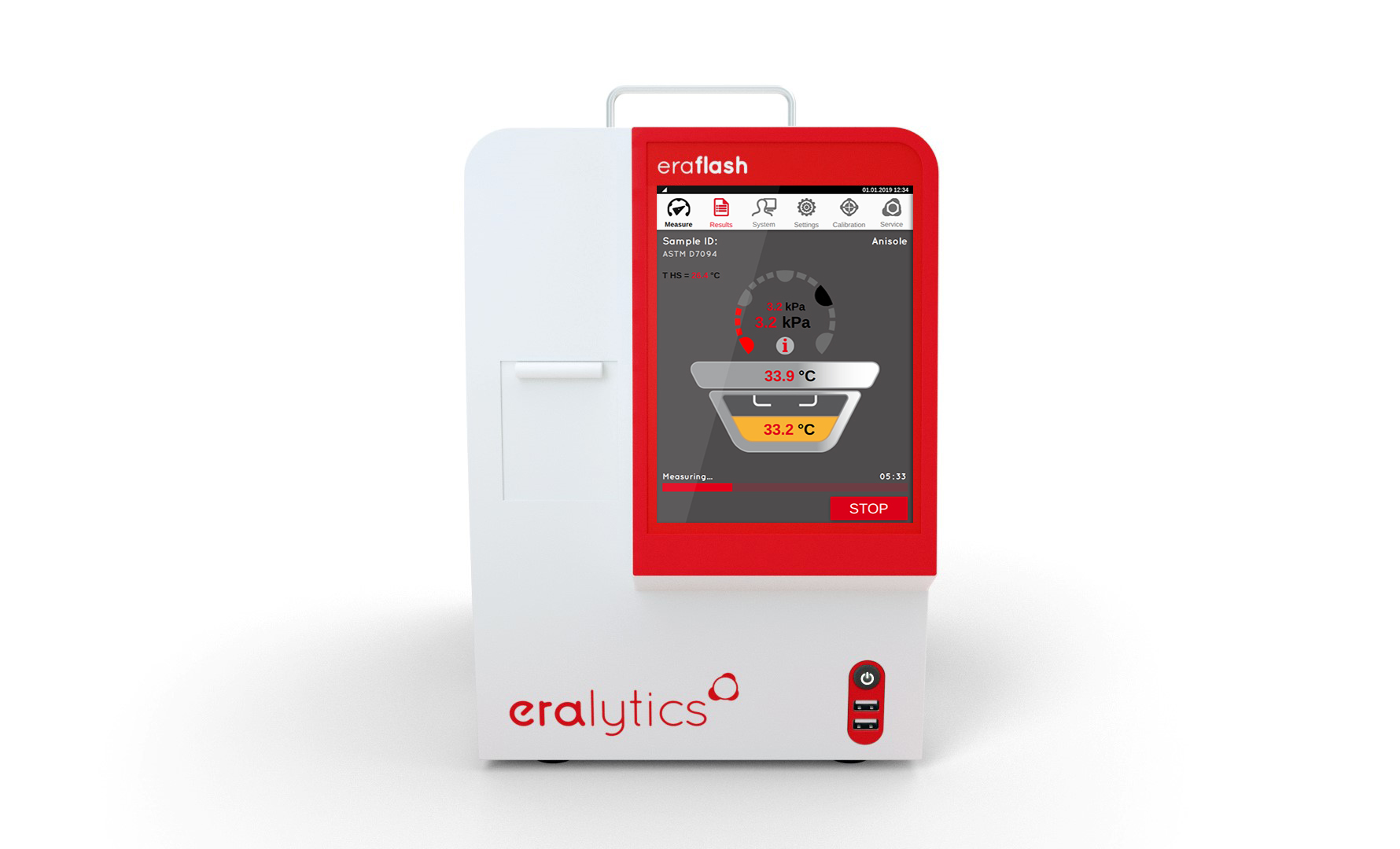

Eraflash

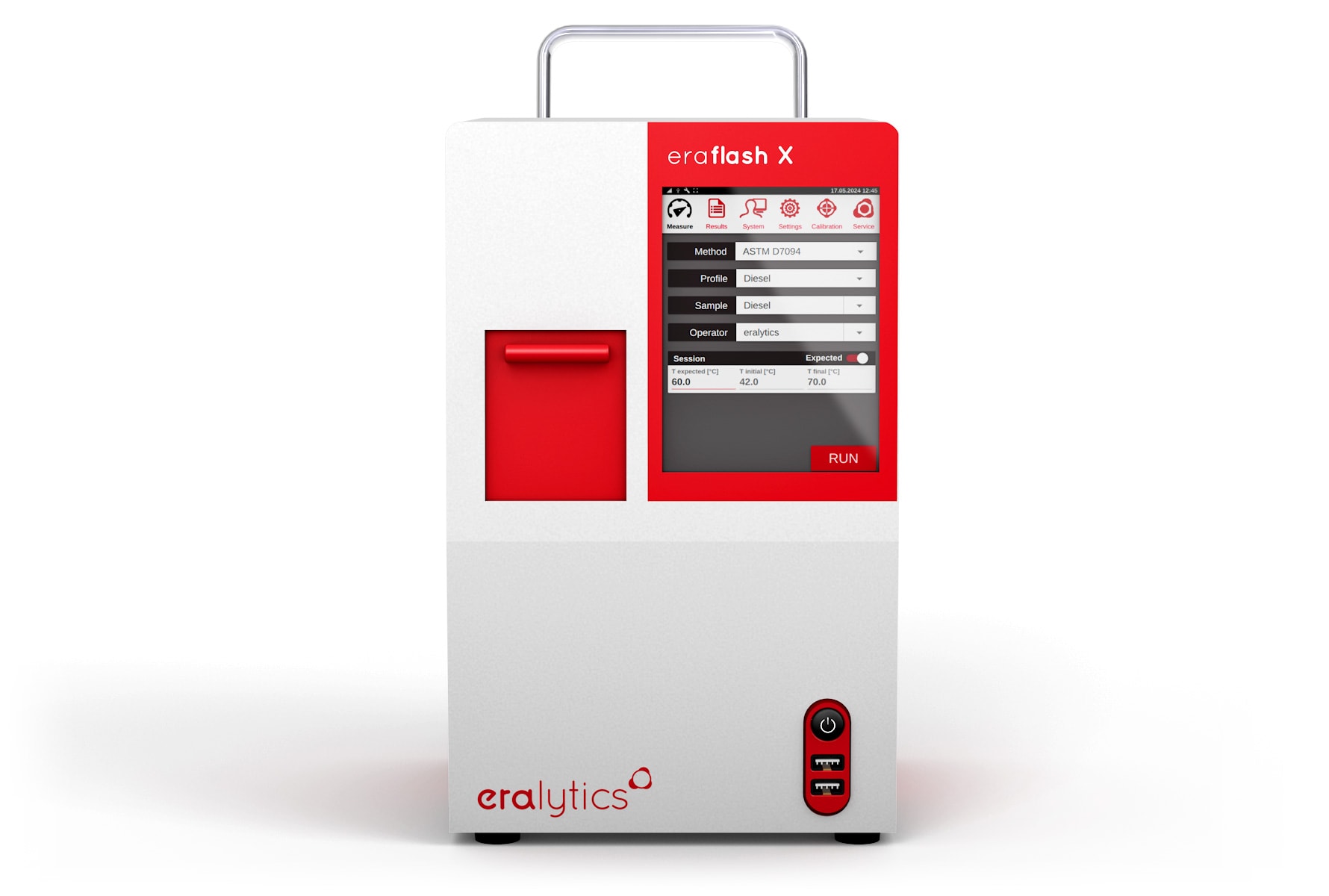

Eraflash X
A portable, fully automated vapor pressure tester engineered for high-precision volatility testing of crude oil, commercial fuels, and LPG. Operating with an integrated piston-driven measuring cell, it delivers rapid, certified vapor pressure measurements in under 5 minutes with a single push-button operation. Its heavy-duty construction and broad temperature control make it the industry benchmark for refinery blending, pipeline transport compliance, and fuel quality inspection worldwide.
Key Capabilities & Parameters Tested
- Vapor Pressure Measurement: Determines Dry Vapor Pressure Equivalent (DVPE), Reid Vapor Pressure (RVP), True Vapor Pressure (TVP), and Absolute Vapor Pressure (AVP) across a wide pressure range up to .
- Vapor-Liquid Ratio (): Measures temperature profile curves for ratio determination directly in the cell without external pressurized gas sources or water baths.
- Live Crude Oil & LPG Testing: Features optional high-pressure inlet systems and pressurized piston cylinders (MPC) to sample and test volatile crude oils and liquefied petroleum gases safely without light-end loss.
- Curve Profiling: Performs multi-temperature and multi- scans to construct full volatility profiles and gas-oil ratio (GOR) curves for upstream oil production and refining optimization.
Standards & Compliance
Method / Standard | Application |
ASTM D5191 / D323 / D4953 | Vapor pressure of gasoline, oxygenated blends, and light hydrocarbons |
ASTM D6377 / D6378 | Vapor pressure of crude oil (TVP/expansion) and fuel volatility |
EN 13016-1 / EN 13016-2 | Air-saturated vapor pressure (VPx) and non-air-saturated vapor pressure |
ASTM D5188 | Temperature for specific Vapor-Liquid () ratios in motor fuels |

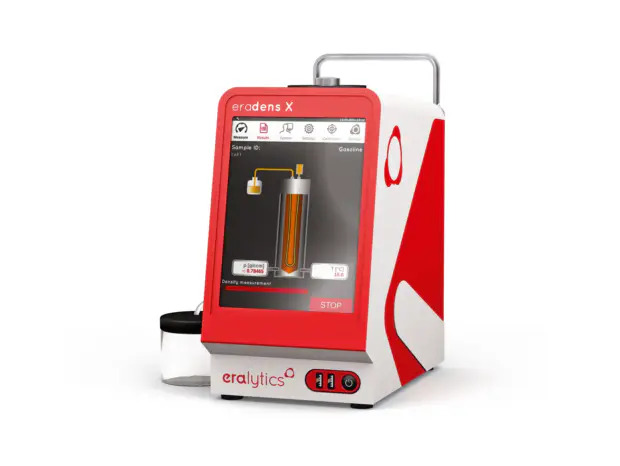

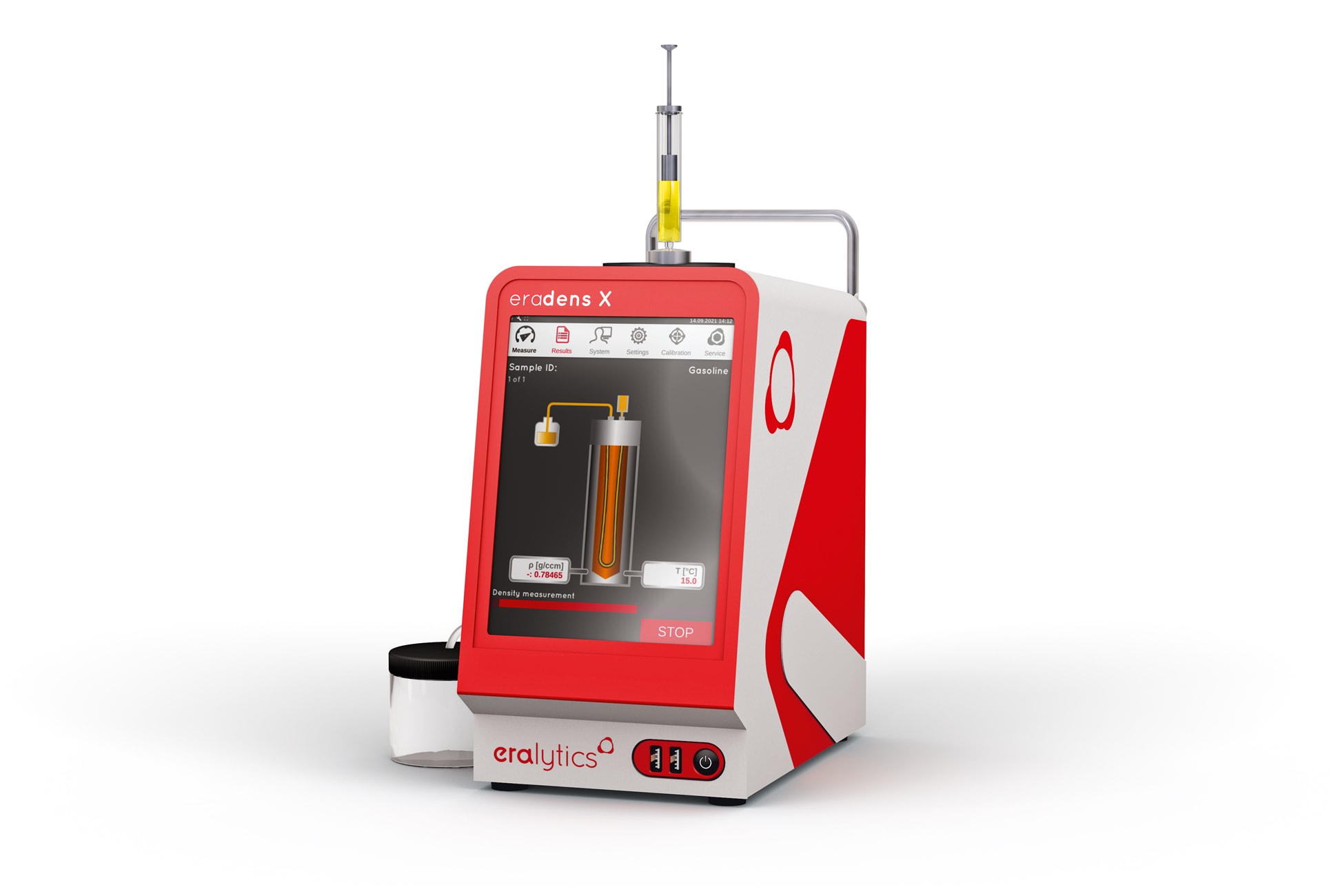

EraDens X
A ultra-compact, high-precision digital density meter engineered for fast and reliable density determinations of liquids across laboratory and field environments. Utilizing a patented, vertically aligned oscillating U-tube cell made of ruby glass, it delivers accurate density measurements in under 1 minute with a single push-button operation. Its light weight, vibration-resistant design, and seamless integration capabilities make it an ideal standalone or modular analyzer for petroleum, chemical, and beverage quality control worldwide.
Key Capabilities & Parameters Tested
- High-Precision Density Determination: Measures density, relative density (specific gravity), and API gravity across a wide temperature range with accuracy up to .
- Patented Vertical U-Tube Design: Features a vertically positioned oscillating U-tube cell that prevents air bubbles from sticking inside the measuring volume, eliminating a primary source of operator error.
- Built-in Concentration Tables: Automatically converts raw density data into real-time concentration readouts for alcohol tables (volume/mass %), Brix, API gravity tables, and chemical percentages.
- Modular Integration: Functions as a compact standalone benchtop unit or mounts directly into other eralytics instruments (such as the ERASPEC or ERAVISC) for simultaneous multi-parameter analysis from a single sample injection.
Standards & Compliance
Method / Standard | Application |
ASTM D4052 | Density, relative density, and API gravity of liquids by digital density meter |
ISO 12185 / EN ISO 3675 | Oscillating U-tube method for crude petroleum and petroleum products |
OIML R22 / AOAC | Alcohol Concentration Tables for spirits, beverages, and industrial ethanol |
ASTM D5002 | Density of crude oils via digital density techniques |
Eraoil

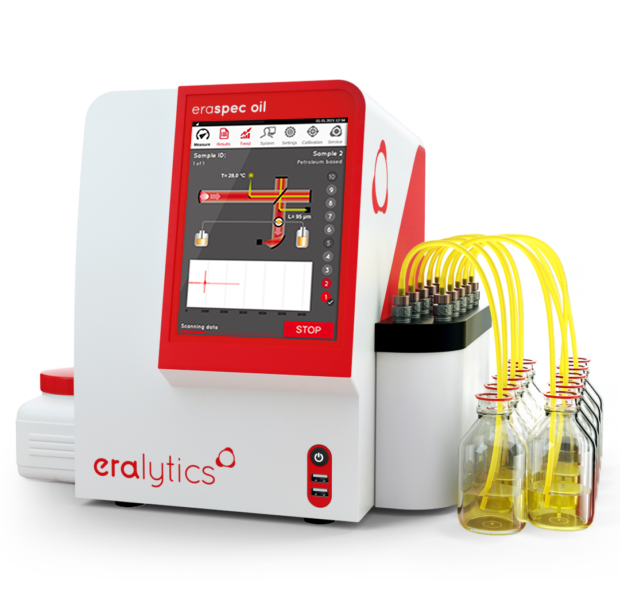

Eraspec Oil
ERAOIL and ERASPEC OIL provide rapid, laboratory-grade analysis of used lubricants for comprehensive oil condition monitoring.
Together, the analyzers examine two critical aspects of lubricant health: elemental wear and contamination and oil degradation and composition.
Key Features
- Fast analysis with results available in seconds
- Laboratory-grade measurements for on-site or in-house testing
- Minimal sample preparation
- Small sample volumes
- Automated measurement and data evaluation
- Trending of oil condition over time
- Support for international ASTM, DIN and JOAP methods
- Results storage, reporting and LIMS connectivity
- Suitable for predictive and condition-based maintenance

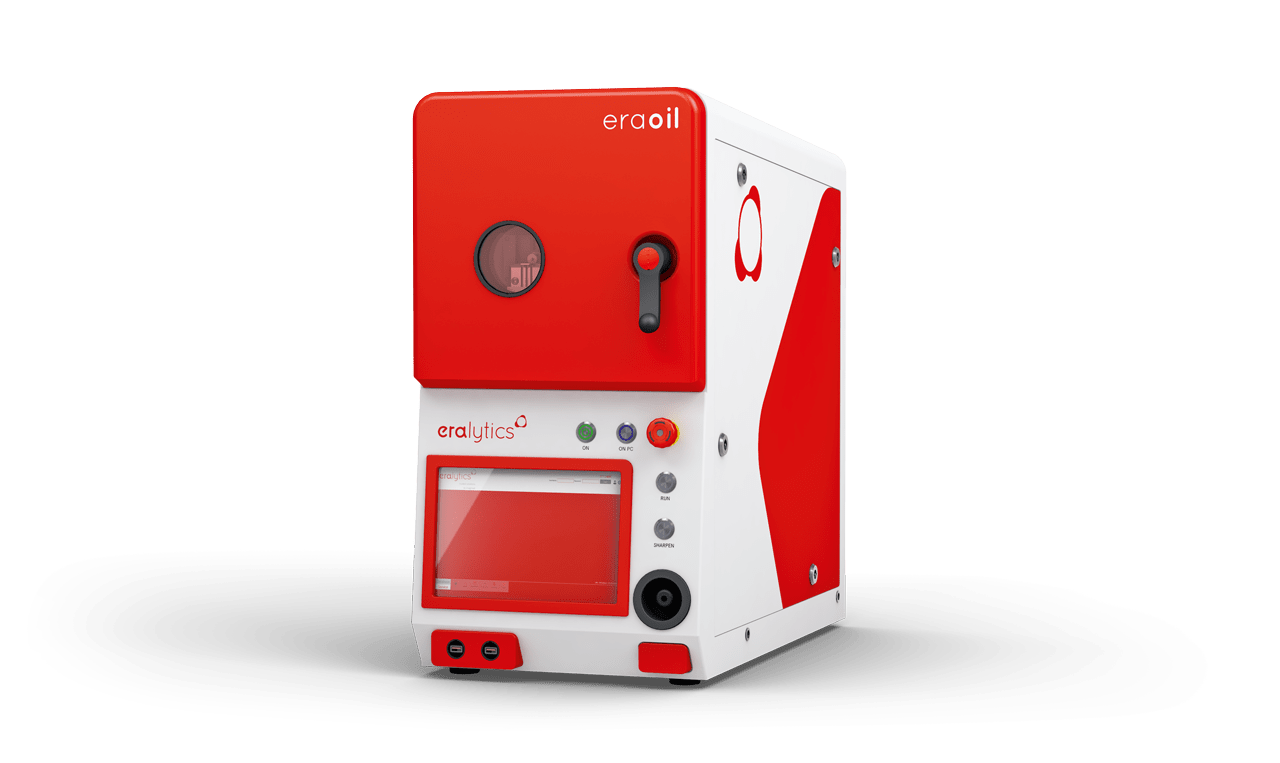

ERAOIL – a rotating disc electrode optical emission spectrometer (RDE-OES) designed to identify wear metals, contaminants and additives in lubricating oils and other operating fluids. It can measure up to 32 elements in approximately 30 seconds, with sub-ppm detection limits for most elements. Applications include engine oils, hydraulic fluids, gear oils, fuels, coolants and other industrial fluids.
ERASPEC OIL is a FTIR lubricant analyzer for monitoring changes in oil chemistry during operation. It measures parameters associated with oxidation, nitration, sulfation, water, soot, fuel dilution, and additive depletion, while calculated properties such as TAN and TBN can also be determined using appropriate chemometric models and libraries.
How It Works
A small sample of used oil is introduced directly into the analyzer. ERAOIL uses RDE-OES to determine elemental concentrations, while ERASPEC OIL uses mid-infrared FTIR spectroscopy to identify chemical changes in the lubricant.
Results can be compared with previous samples to establish trends, alarms and changes in oil condition, supporting early detection of abnormal wear, contamination, and lubricant degradation.
With rapid, repeatable oil analysis, maintenance teams can move from periodic laboratory testing to proactive, condition-based maintenance; helping identify developing problems, reduce unplanned downtime, and optimize oil change intervals.
Applications
Engines | Gearboxes | Hydraulic Systems | Turbines | Compressors | Industrial Machinery | Diesel & Gas Turbines | Heavy Equipment

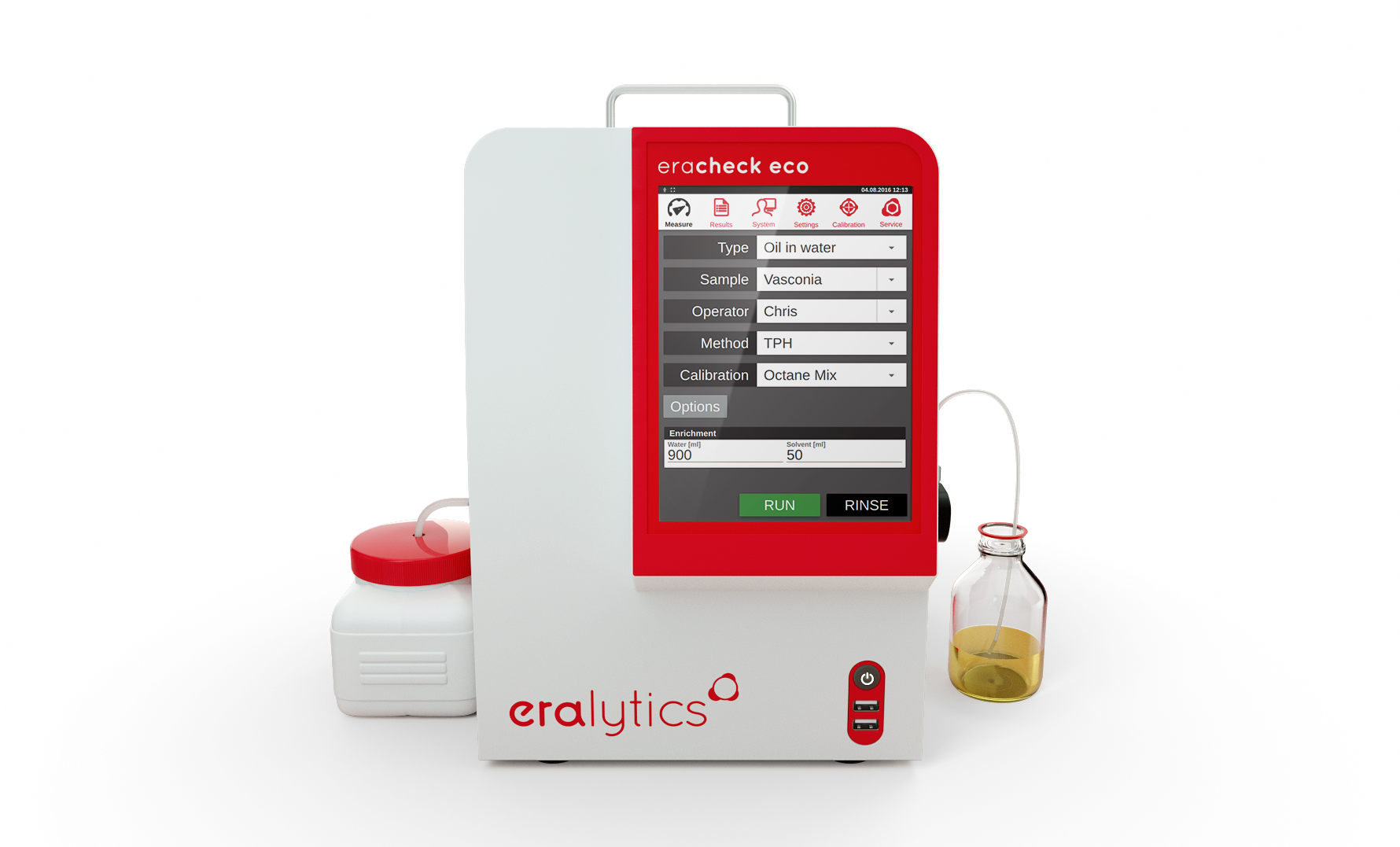

Eracheck Eco
Eracheck X
The ERALYTICS ERACHECK ECO and ERACHECK X provide fast and reliable analysis of oil and hydrocarbons in water and wastewater. They are designed for applications requiring accurate determination of Total Oil and Grease (TOG), Total Petroleum Hydrocarbons (TPH) and, with the ERACHECK X, Fats, Oil and Grease (FOG).
These analyzers use solvent extraction followed by non-dispersive mid-infrared (NDIR) spectroscopy, providing rapid and repeatable results without the need for solvent evaporation.
Key Features
- ASTM D8193 compliant oil-in-water analysis
- Measurement of TOG, TPH and FOG
- Fast analysis with results available within minutes
- Measurement ranges of up to 1,000 mg/L (ECO) and 3,000 mg/L (X)
- High sensitivity for low-level oil contamination
- CFC-free solvent extraction using cyclohexane
- Direct measurement of the extract, reducing loss of volatile hydrocarbons
- User-defined calibrations and correlations
- Large internal data storage and LIMS connectivity
- Designed for reliable laboratory and field applications
How It Works
A water sample is extracted with an appropriate solvent to separate hydrocarbons from the aqueous phase. The resulting extract is then analyzed using mid-infrared spectroscopy. Hydrocarbon absorption in the infrared region is measured and converted into the concentration of oil in the original water sample.
The method is fast, requires minimal sample preparation and avoids the solvent evaporation step associated with gravimetric techniques.
The ERACHECK ECO is optimized for laboratory oil-in-water analysis, offering TOG and TPH determination, a detection limit of 0.5 mg/L, and an optional 10-position autosampler for higher sample throughput.
The ERACHECK X is a portable, rugged solution for on-site analysis, providing TOG, TPH and FOG measurement with results in approximately 5 minutes, including extraction. Its compact design and 12 V DC operation make it suitable for field applications.
Applications
Oil & Gas | Produced Water | Industrial Wastewater | Discharge Water | Process Water | Environmental Monitoring | Wastewater Treatment
- ERAFLASH / ERAFLASH X: Sets the industry standard for flash point testing across wide temperature ranges (-25 °C to 420 °C) using patented Peltier Boost Technology (PBT).
- Primary Test Standards: Fully compliant with ASTM D7094 (Modified CCCFP), ASTM D6450, ASTM D8606 (liquid waste analysis), ISO 24966, and IP 620.
- Fuel Specification Compliance: Formally accepted as a direct, bias-free replacement for Pensky-Martens (ASTM D93) in specifications for Diesel (ASTM D975, ASTM D7467), Jet Fuel (ASTM D1655, ASTM D7566), Fuel Oil (ASTM D396), Kerosene (ASTM D3699), and Gas Turbine Fuel (ASTM D2880).
